Wet Downdraft Tables

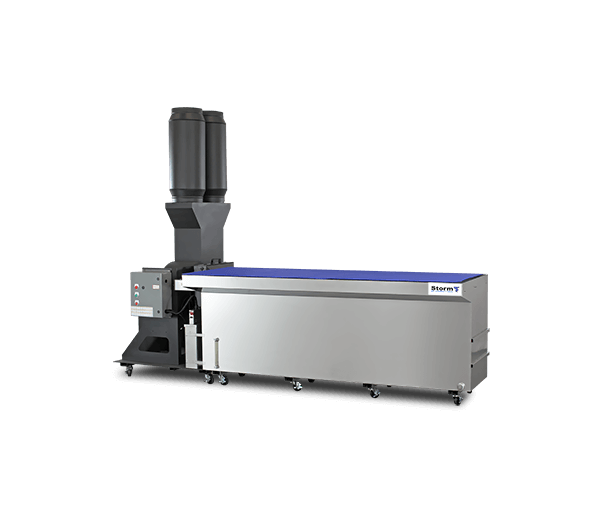

Storm 3′ X 8′ Wet Downdraft Table

Name: Storm 3′ X 8′ Wet Downdraft Table
Brand: Sledge Tech

Eliminate the risk of fire and explosion in your facility due to combustible and flammable dust with the Storm 3' X 8' Wet Downdraft Table. NFPA-compliant. Learn more.

15.0 HP TEFC Motor generating 6500 CFM of air flow

Max air flow

96” x 36” Worksurface

Worksurface

High Capture Face Velocity (230 FPM)

Capture face velocity

15.0 HP motor that generates up to 6500 CFM of air flow, housed within a stainless steel corrosion-proof cabinet

Motor

Request A Quote

Overview

Storm 3′ X 8′ Wet Downdraft Table

Sledge Tech's Storm 3' X 8' Wet Downdraft Table is an NFPA-compliant source capture solution for the safe handling of combustible and flammable dusts such as magnesium, titanium and aluminum. The Storm Wet Downdraft Table uses water as its filtration media to safely extinguish sparks and other contaminates. Among its many practical benefits is its compact, self-contained design – eliminating the need for costly ducting or central installation.

Built for performance and durability, the Storm 3' X 8' Wet Downdraft Table features a 15.0 HP motor that generates up to 6500 CFM of air flow, housed within a stainless steel corrosion-proof cabinet. Its heavy-duty industrial swivel castors provide ease of mobility for additional convenience. Smartly designed and solidly built, the Storm 3' X 8' Wet Downdraft Table is one of the most cost-effective solutions you can buy. Ideal for working with large-sized parts.

15.0 HP TEFC Motor generating 6500 CFM of air flow

of air flow at peak performance

High Capture Face Velocity (230 FPM)

capture face velocity keeps fumes out of the breathing zone

Compliant with NFPA guidelines for combustible dust

compliant capture of dust, smoke and weld fumes

Specifications

Features, Benefits & Technical Specs

96” x 36” Worksurface
High Capture Face Velocity (230 FPM)
15.0 HP TEFC Motor generating 6500 CFM of air flow
Stainless Steel Anti-corrosion Construction
Low Water auto-shutdown
Blue Rubber Grid Matting
Manual Water Refill

Source capture solution
100% Duty Cycle, online refill
Compliant with NFPA guidelines for combustible dust
Heavy-duty castors for easy mobility

Worksurface	96” x 36” Worksurface
Max air flow	15.0 HP TEFC Motor generating 6500 CFM of air flow
Capture face velocity	High Capture Face Velocity (230 FPM)
Motor	15.0 HP motor that generates up to 6500 CFM of air flow, housed within a stainless steel corrosion-proof cabinet
Compliance	Compliant with NFPA guidelines for combustible dust

Download Full Product Brochure →

FAQ

Common Questions

What’s the difference between a dry downdraft table and a wet downdraft table?

A dry downdraft table pulls dust and fume through dry filter media, while a wet downdraft table (like our Storm series) draws air through a water bath, which captures sparks and combustible dust before they reach a filter. Wet tables are generally the safer choice for processes that generate hot sparks, aluminum or magnesium dust, or other combustible fines where a dry filter would pose an ignition risk.
