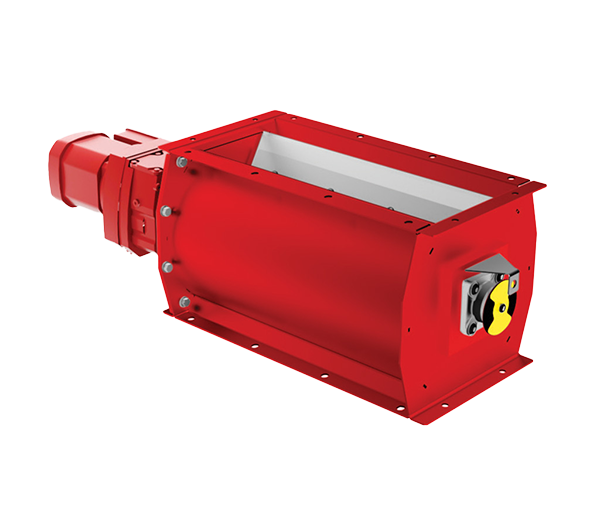

Boss Process Rotary Valve HTS Series

Name: Boss Process Rotary Valve HTS Series
Brand: Sledge Tech

Overview

Boss Process Rotary Valve HTS Series

The Boss Process Rotary Valve HTS Series is ideal for dust collectors, cyclones, silos, hoppers, and specialized process applications.

Technical Specifications

Sizes	10” & 14”
Certifications and Standards	NFPA 69 Compliant, ATEX Certified EN 15089, OSHA Compliant drive guard for the Explosion Isolation Model, External bearing design 8-vane rotary blade for the Explosion Isolation, Flex tip design certified to prevent flame passage for Passive Explosion Isolation

Specifications

Features, Benefits & Technical Specs

Cast iron housing with safety red finish EX version
Explosion and Flame Proof design rated up to 25 PSI / 670” WC
Airlock in high vacuum installations - applications up to 160” WC
Direct drive gearmotor with flex coupling

Variable speed drive control option
Square to round flange adapter including gasket and mounting bolts
Quick-clean valve housing design option

FAQ

Common Questions

What is spark detection and extinguishing, and do I need it?

A spark detection and extinguishing system (like our Raptor line) continuously monitors ductwork for sparks or embers generated upstream by grinding, cutting, or other hot processes, and automatically extinguishes them with a water mist before they reach a filter or collector where they could ignite accumulated dust. It's typically recommended wherever a process both generates sparks and feeds a dry dust collection system.

What’s the difference between an explosion vent and an explosion isolation valve?

An explosion vent (like our Vigilex domed or flameless vent panels) is designed to relieve pressure safely to the outside of a vessel if a dust explosion occurs inside it. An explosion isolation valve (like our Vigiflap valves) is designed to stop flame and pressure from traveling through ductwork from one piece of equipment to another, preventing a secondary explosion elsewhere in the system. Most combustible-dust systems use both as part of a layered protection strategy.
