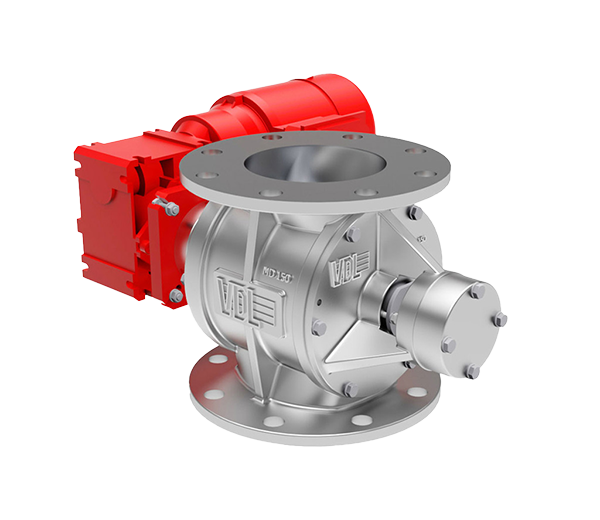

Boss Process Rotary Valve MD Series

Name: Boss Process Rotary Valve MD Series
Brand: Sledge Tech

Overview

Boss Process Rotary Valve MD Series

The Boss Process Rotary Valve MD Series is ideal for feeding, metering and pneumatic conveying applications.

Technical Specifications

Sizes	6”, 8”, 10” & 12”
Certifications and Standards	NFPA 69 Compliant, ATEX Certified EN 15089, OSHA Compliant drive guard for the Explosion Isolation Model, External bearing design 8-vane rotary blade for the Explosion Isolation, Certified to prevent flame passage for Passive Explosion Isolation

Specifications

Features, Benefits & Technical Specs

Manages differential pressure up to 15 PSI / 400” WC
Shaft sealing with adjustable gland gasket
Cast iron housing with flanged inlet/outlet
Direct drive motor with gearbox
8 vane rotor with options for polyurethane tips, steel or stainless steel
The Explosion version certified to withstand explosive pressures up to 36 PSI / 25 PSI (985” WC / 670” WC) with polyurethane tips

Variable speed drive control option
Nickle plating or chromium plating options
Quick-clean valve housing design option

FAQ

Common Questions

What is spark detection and extinguishing, and do I need it?

A spark detection and extinguishing system (like our Raptor line) continuously monitors ductwork for sparks or embers generated upstream by grinding, cutting, or other hot processes, and automatically extinguishes them with a water mist before they reach a filter or collector where they could ignite accumulated dust. It's typically recommended wherever a process both generates sparks and feeds a dry dust collection system.

What’s the difference between an explosion vent and an explosion isolation valve?

An explosion vent (like our Vigilex domed or flameless vent panels) is designed to relieve pressure safely to the outside of a vessel if a dust explosion occurs inside it. An explosion isolation valve (like our Vigiflap valves) is designed to stop flame and pressure from traveling through ductwork from one piece of equipment to another, preventing a secondary explosion elsewhere in the system. Most combustible-dust systems use both as part of a layered protection strategy.
