Vigilex VD Domed Explosion Vent Panels

Name: Vigilex VD Domed Explosion Vent Panels
Brand: Sledge Tech

Overview

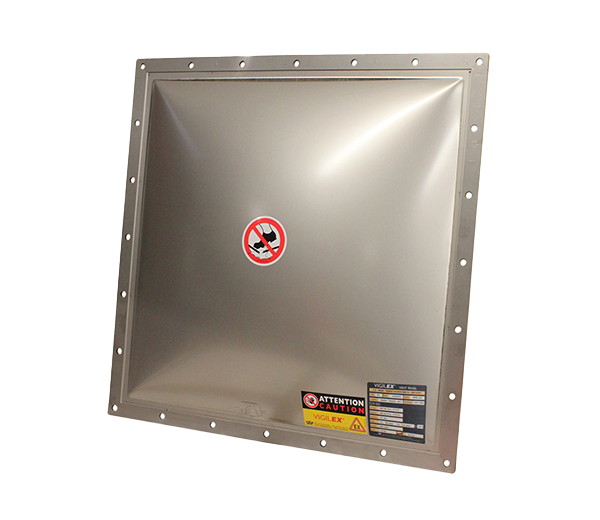

Vigilex VD Domed Explosion Vent Panels

Vigilex VD Domed Explosion Vent Panels are specifically designed for high negative pressure applications and installations where high psi pulse cleaning mechanisms could cause metal fatigue over time. The dome design is optimal for high vacuum filter systems where explosion relief venting is required. Typical applications include dust collector filters, cyclones, and high pressure vessels.

The VD Domed Explosion Vent Panel is pressure tested and certified in compliance with a variety of test standards. It is ideal for OEM and retrofit applications. It is easy to install with premium gaskets and flanges.

Standard burst pressure is 1.45 psi / 0.1 bar. Application specific burst pressures between 1.45 psi up to 7 psi are available for special orders.

Technical Specifications

Certifications & Standards	Ex II GD; EN 14491, EN 14994, EN 14797, EN 1127.1; EU Certificate INERIS 15ATEX0001X; NFPA 68 / NFPA 69 Compliant; EN 16447
Standard burst pressure	1.45 psi / 0.1 bar (application specific 1.45-7 psi available)

Specifications

Features, Benefits & Technical Specs

Single Flat Panel 304 stainless steel
Full frame black EPDM gasket -40°F +176°F (-40°C +80°C)
Integral 304L stainless steel flange

Stainless steel 316L construction
Full frame white silicone FDA gasket -76°F +392°F (-60°C +200 °C)
High temperature graphite gasket -328°F +932°F (-200°C +500°C)
Integral 316L stainless steel flange with gasket

FAQ

Common Questions

What is spark detection and extinguishing, and do I need it?

A spark detection and extinguishing system (like our Raptor line) continuously monitors ductwork for sparks or embers generated upstream by grinding, cutting, or other hot processes, and automatically extinguishes them with a water mist before they reach a filter or collector where they could ignite accumulated dust. It's typically recommended wherever a process both generates sparks and feeds a dry dust collection system.

What’s the difference between an explosion vent and an explosion isolation valve?

An explosion vent (like our Vigilex domed or flameless vent panels) is designed to relieve pressure safely to the outside of a vessel if a dust explosion occurs inside it. An explosion isolation valve (like our Vigiflap valves) is designed to stop flame and pressure from traveling through ductwork from one piece of equipment to another, preventing a secondary explosion elsewhere in the system. Most combustible-dust systems use both as part of a layered protection strategy.
